Phenomenon: Substrate, paint film and coating, the adhesion between layers is very poor, causing some or even all of the paint film or clad layer to peel off.
1.1. Problem:Primer comes off.
1.2. Phenomenon:Film peeling occurs between primer and substrate.
1.3. Causes and solutions
Causes | Solutions |
Changes in customers’ materials (Higher polar components such as PP / nylon, glass fiber) | Strictly control the quality of the substrate |
The surface of the substrate is not clean, and there are mold release agents and oil stains on the surface. | Thoroughly clean the surface of the substrate. |
Paint does not match the workpiece. | Use matching paint. |
Baking temperature and time is not enough and solvent volatilization is not complete. | Properly increase the baking temperature and extend the baking time. |
The surface of workpiece is too smooth. | Appropriately polish the workpiece or pre-process the workpiece |
The paint is not cured completely and the cross-linking is not tight. | Strengthen the curing of paint film. |
The baking time is too long,so that the paint surface is annealed. | Strictly follow the construction process. |
Primer and top coating do not match. | Use the matching primer and top coating. |

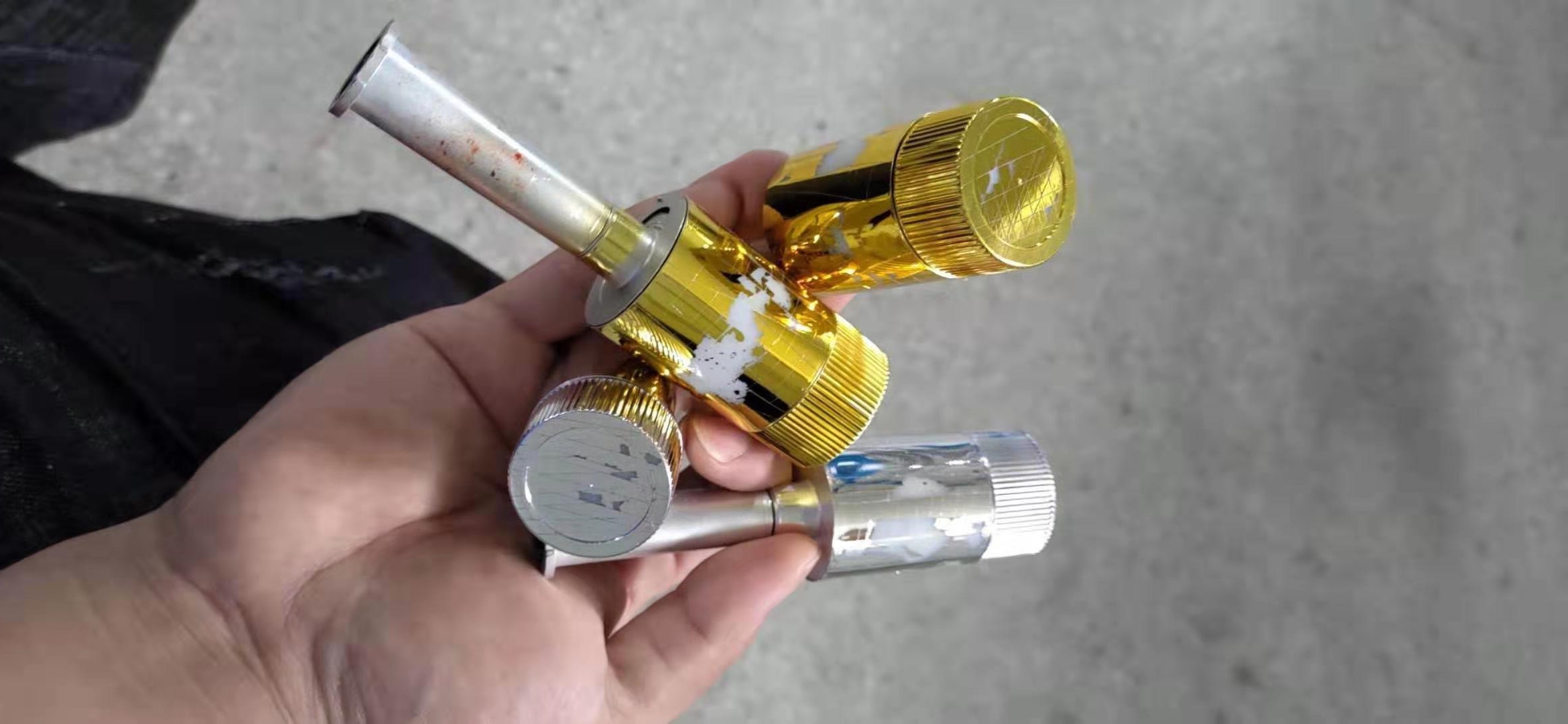

2.1. Problem:Plating peels off.
2.2. Phenomenon:The coating falls off between the coating layer and the primer.
2.3. Causes and solutions
Causes | Solutions |
The primer is not cured completely. | Strengthen the curing of paint film. |
The surface of the substrate is not clean, and there are mold release agents and oil stains on the surface. | Thoroughly clean the surface of the substrate. |
Primer or UV primer is over-cured. | Strictly follow the construction process. |
Primer and top coating do not match. | Use the matching primer and top coating. |

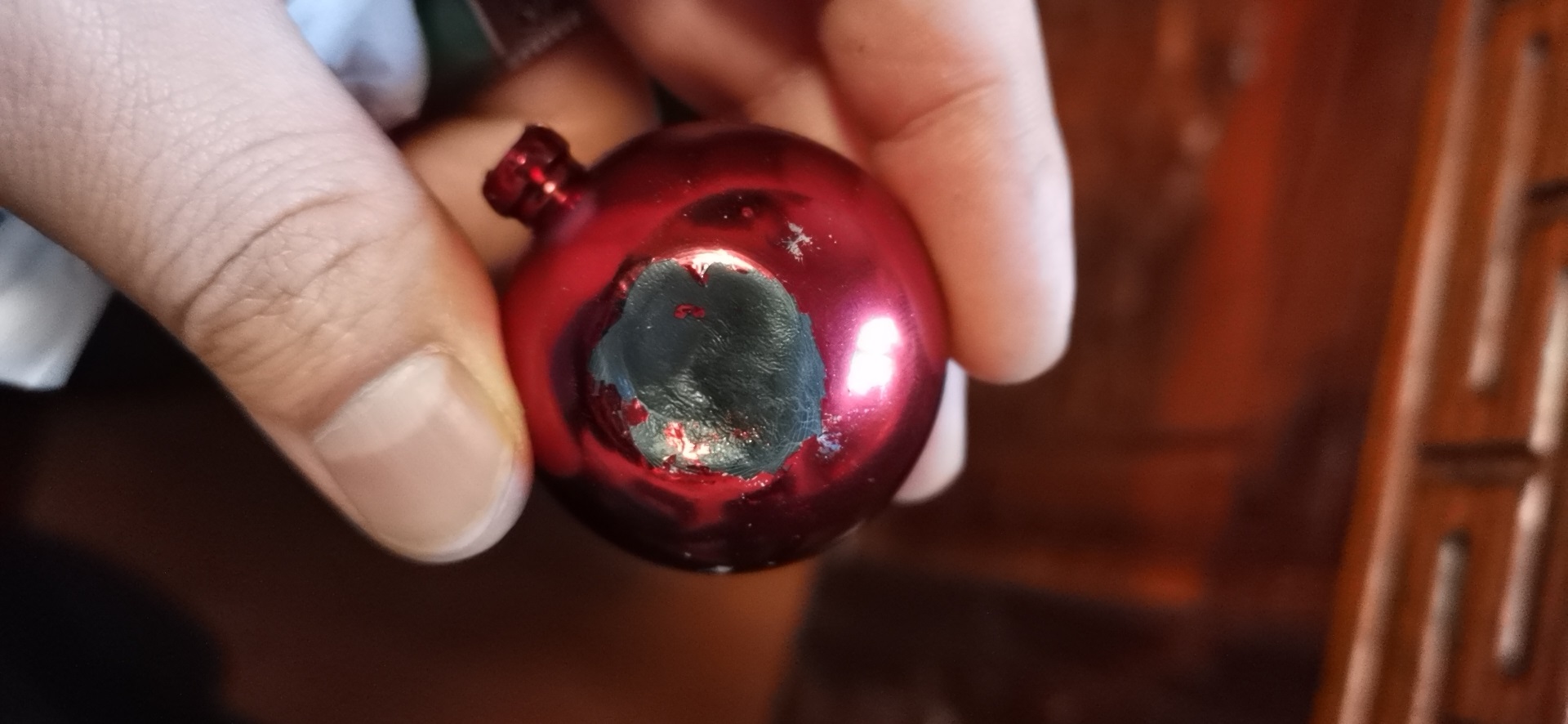

3.1. Problem:Top coating peels off.
3.2. Phenomenon:The coating falls off between the coating layer and the top coating.
3.3. Causes and solutions
Causes | Solutions |
The plating layer is exposed to the air for too long (Water and oil pollution) | Avoid prolonged exposure of the coating layer to the air. |
Incomplete solvent evaporation. | Properly increase the baking temperature and extend the baking time. |
Topcoat is not cured completely. | Strengthen the curing of paint film. |
Color dyes is added too much and the paint is sprayed too much. | Strictly follow the construction process. |
Poor adhesion of blue and green paint(common phenomenon in the industry) | Add green and blue adherence promotors. |
